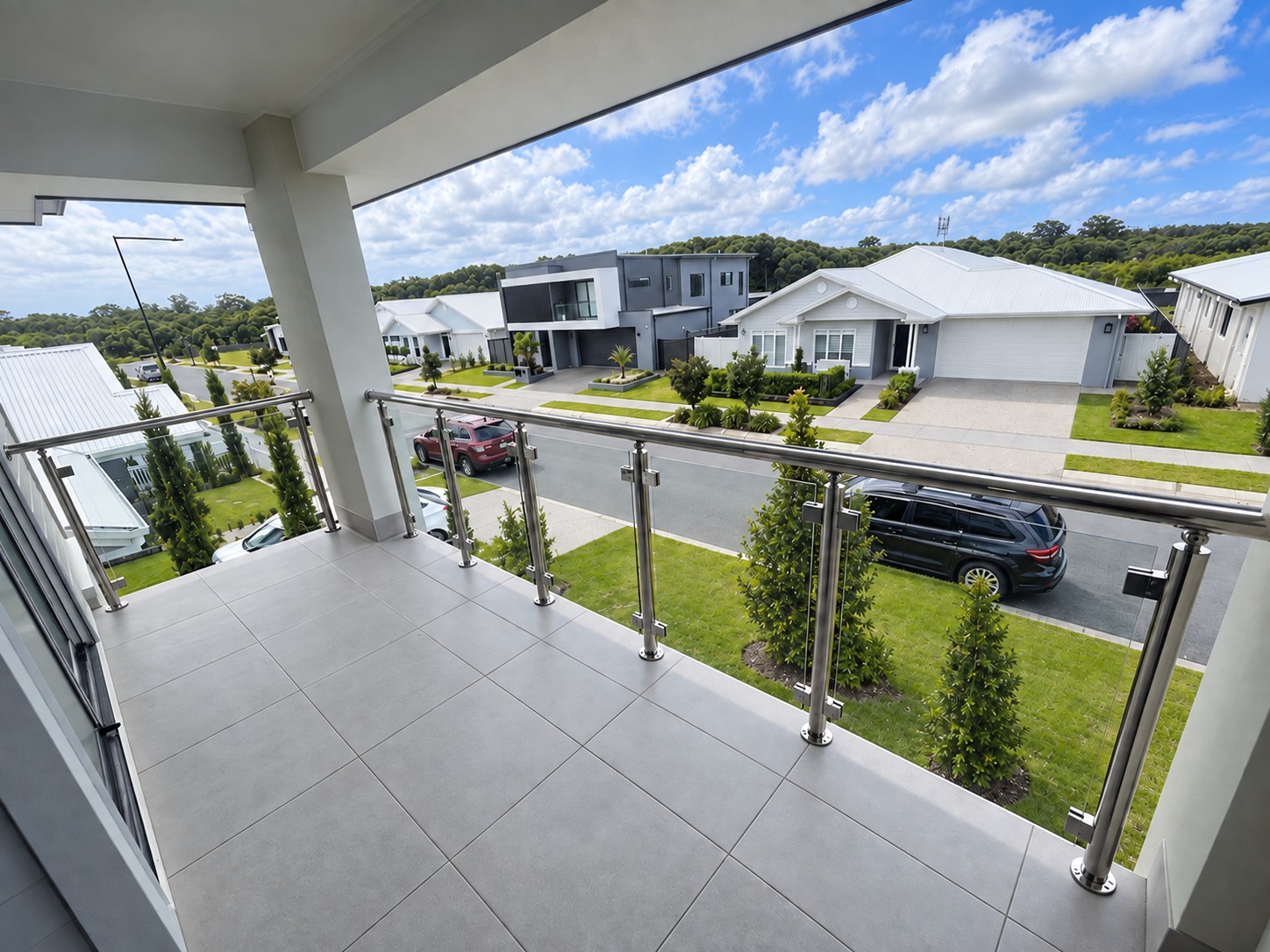

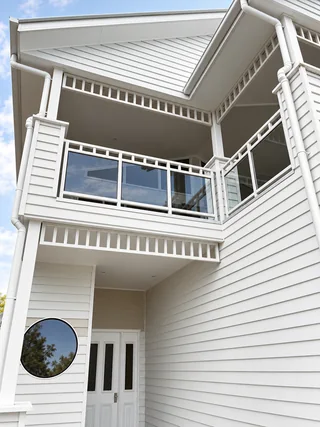

GA GB1 semi-frameless
50 mm stainless steel posts with base plates, D clamps and a stainless top rail.
GA Fencing project photo · Digitally retouched · Select the image to enlarge
Glass Balustrade
Glass balustrades
When the view is a feature, glass lets you enjoy more of it. A glass balustrade gives balconies, decks and stairs an open appearance, with hardware that can be discreet or become part of the design. We help you choose between posts, spigots, a bottom channel or face fixings to suit the look and the structure.
GlassGA Fencing
Design features
- An open outlook across balconies and decks
- A choice of visible posts or discreet base fixings
- Slim cap rails or a more defined handrail
Your quote will set out the design, finish and agreed supply or installation work.
Construction & installation
Post-supported glass is held by clamps. Spigots grip the glass near its base, while a channel supports its lower edge. Face-fixed systems use fittings through the glass into the structural edge. Each approach needs the right combination of glass, rail and fixings.
GA design options
Compare the GA designs below to find the look you prefer. The gallery shows a range of projects; we will confirm the exact sections and fixings for your selection.

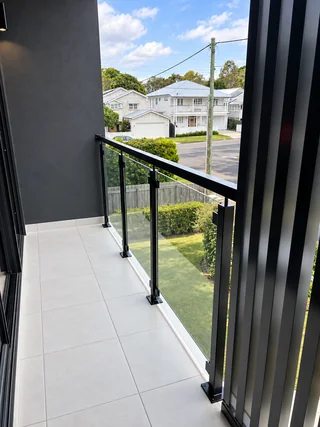

GA GB4040 semi-frameless
40 mm stainless steel posts with base plates and D-type post clamps.

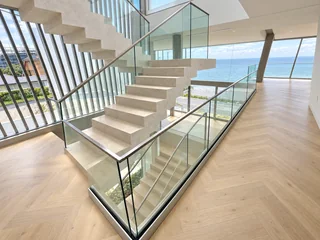

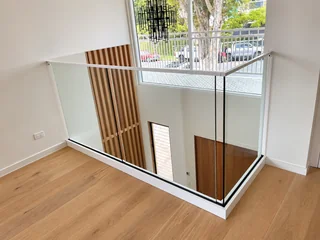

GA GBC01 channel
Bottom-mounted channel with a 50 × 25 mm slotted handrail over the glass, secured into sockets at each end.

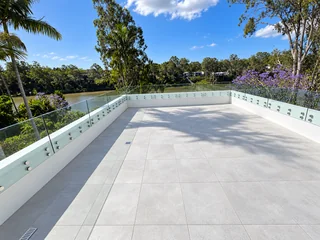

Bahamas frameless
Square spigots with a slim Nano top rail; black hardware is recorded in the samples.

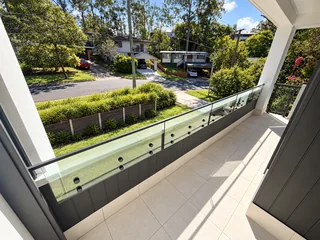

Face-fixed glass
Stand-off pin fixings connect the glass to the structural face, with a Nano top rail in the recorded arrangement.
Styles & specifications
These design specifications are examples. Your quote confirms the selected design and final specification.
Frameless Glass Balustrade
- Standard 15mm Glass (First Storey)
- Stainless Steel Spigots
- Face Fixed or Core Drilled
- Non-Conductive Where Required
- Optional Stainless Steel Hand Rail
*Quoted price is dependant on total meterage, final design and job location.
*Glass Balustrades From Second Storey & Onwards Now Require 13.52mm Toughened Safety Glass.
Semi Frameless Glass Balustrade
- Standard 15mm Glass (First Storey)
- Stainless Steel Spigots
- Face Fixed or Core Drilled
- Non-Conductive Where Required
- Stainless Steel Top Rail
- Optional Stainless Steel Hand Rail
*Quoted price is dependant on total meterage, final design and job location.
*Glass Balustrades From Second Storey & Onwards Now Require 13.52 mm Toughened Safety Glass.
Make it suit your space
01
Fixing system
02
Top rail or glass-cap profile
03
Glass specification and panel layout
